1. Disconnect the negative battery cable..

2. Remove the car-navigation unit. (with car-navigation system).

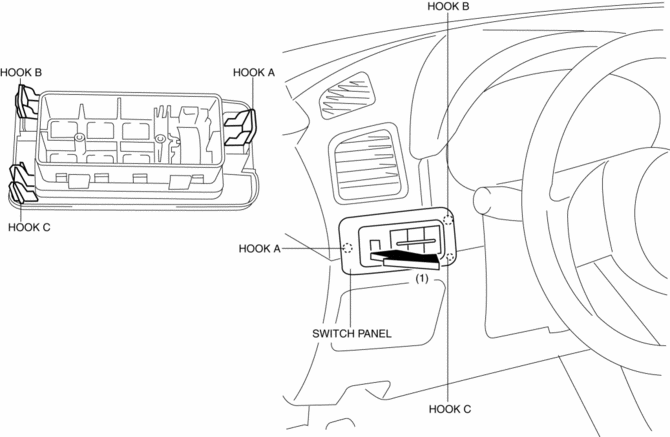

3. Insert your hand from the lower side of the lower panel (without car-navigation system) or the area where the car-navigation unit was installed (with car-navigation system), press the switch panel in the direction of the arrow (1) shown in the figure and remove it while detaching hook A and B and hook C.


4. Disconnect the cluster switch connector.

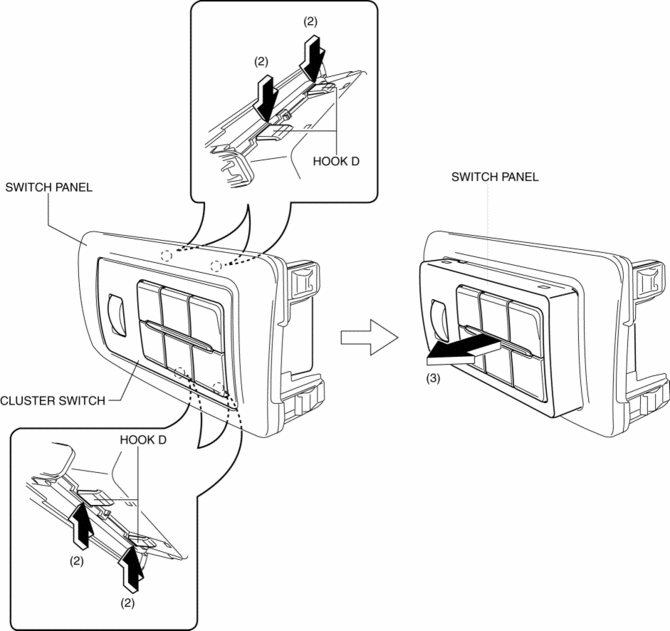

5. Remove the cluster switch in the direction of the arrow (3) while detaching hooks D in the direction of the arrow (2).


6. Install in the reverse order of removal.
