Mazda CX-5 Service & Repair Manual: Starter Inspection [Skyactiv G 2.0]

On-vehicle Inspection

1. Verify that the battery is fully charged.

2. The starter is normal if it rotates smoothly and without any noise when the engine is cranked.

• If the starter does not operate, inspect the following:

• Remove the starter, and inspect the starter unit.

• Inspect the related wiring harnesses, the ignition switch, and the transaxle range switch (ATX) or starter interlock switch (MTX).

No-load Test

1. Verify that the battery is fully charged.

2. Connect the starter, battery, and a tester as shown in the figure.

3. Operate the starter and verify that it rotates smoothly.

• If the starter does not rotate smoothly, inspect the starter unit.

4. Measure the voltage and current while the starter is operating.

• If not within specification, replace the starter.

Starter no-load test voltage

• 11 V

Starter no-load test current

• 95 A or less

Magnetic Switch Operation Inspection

Pull-out test

NOTE:

• Depending on the battery charge condition, the starter motor pinion may rotate while in an extended state. This is due to current flowing to the starter motor through the pull-in coil to turn the starter motor, and does not indicate an abnormality.

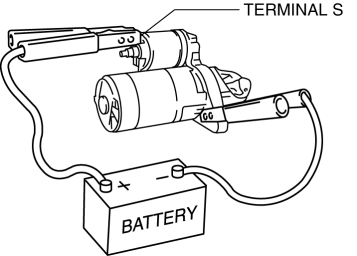

1. Verify that the starter motor pinion is extended while battery positive voltage is connected to terminal S and the starter body is grounded.

• If the starter motor pinion is not extended, repair or replace the starter.

Return test

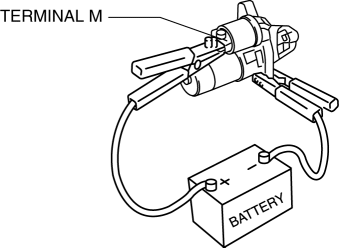

1. Disconnect the motor wire from terminal M.

2. Connect battery positive voltage to terminal M and ground the starter body.

3. Pull out the drive pinion with a screwdriver. Verify that it returns to its original position when released.

• If it does not return, repair or replace the starter.

Pinion Gap Inspection

1. Pull out the drive pinion with the battery positive voltage connected to terminal S and the starter body grounded.

CAUTION:

• Applying power for more than 10 s can damage the starter. Do not apply power for more than 10 s.

2. Measure the pinion gap while the drive pinion is extended.

• If not as specified, adjust with an adjustment washer (between drive housing front cover and magnetic switch).

Starter pinion gap

• 0.5—2.0 mm {0.02—0.07 in}

Starter Inner Parts Inspection

Armature

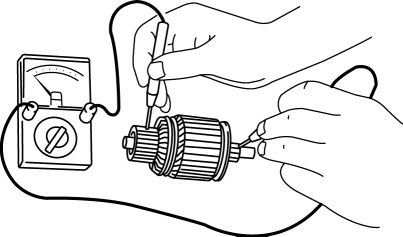

1. Verify that there is no continuity between the commutator and the core at each segment using a tester.

• If there is continuity, replace the armature.

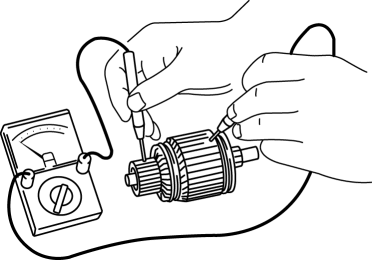

2. Verify that there is no continuity between the commutator and the shaft using a tester.

• If there is continuity, replace the armature.

3. Place the armature on V?blocks, and measure the runout using a dial indicator.

• If not within specification, replace the armature.

Starter armature runout

• 0.1 mm {0.004 in} max.

4. Measure the commutator diameter.

• If not within the minimum specification, replace the armature.

Starter commutator diameter

• Standard: 29.4 mm {1.16 in}

• Minimum: 28.8 mm {1.13 in}

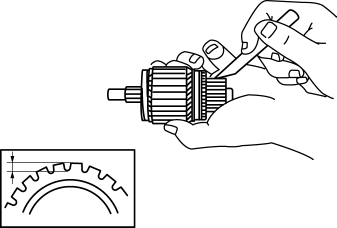

5. Measure the segment groove depth of the commutator.

• If not within the minimum specification, undercut the grooves to the standard depth.

Segment groove depth of starter commutator

• Standard: 0.5 mm {0.02 in}

• Minimum: 0.2 mm {0.008 in}

Magnetic switch

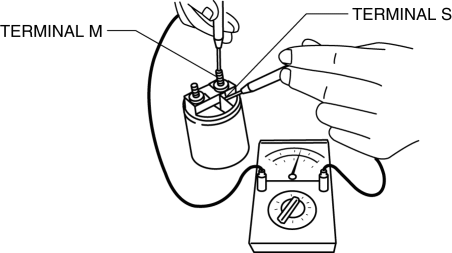

1. Inspect for continuity between terminals S and M using a tester.

• If there is no continuity, replace the magnetic switch.

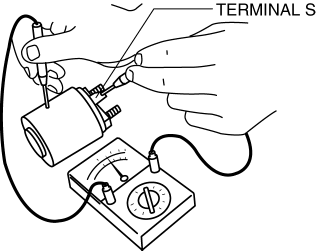

2. Inspect for continuity between terminal S and the body using a tester.

• If there is no continuity, replace the magnetic switch.

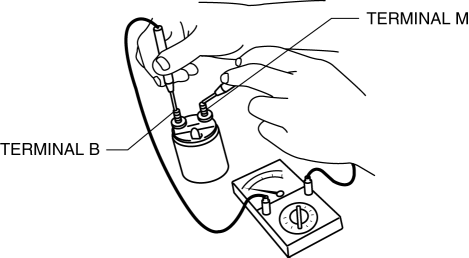

3. Verify that there is no continuity between terminals M and B using a tester.

• If there is continuity, replace the magnetic switch.

Brush and brush holder

1. Verify that there is no continuity between each insulated brush and plate using a tester.

• If there is continuity, replace the brush holder.

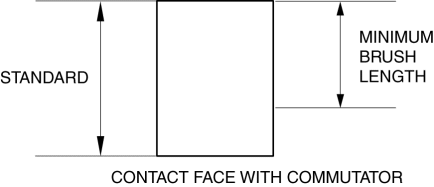

2. Measure the brush length.

• If any brush is worn almost to or beyond the minimum specification, replace all of the brushes.

Starter brush length

• Standard: 12.3 mm {0.484 in}

• Minimum: 5.5 mm {0.22 in}

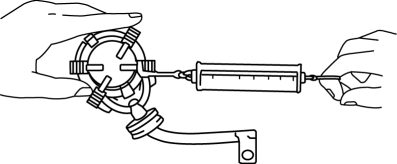

3. Measure the brush spring force using a spring balance.

• If not within the minimum specification, replace the brush and brush holder component.

Starter brush spring force

• Standard: 15.1—20.4 N {1.54—2.08 kgf, 3.40—4.58 lbf}

• Minimum: 2.75 N {0.280 kgf, 0.618 lbf}
