Purpose

The speedometer notifies the driver of the speed at which the vehicle is traveling.

Function

The instrument cluster controls the speedometer needle based on the vehicle speed signal from the PCM and displays the current vehicle speed.

Construction

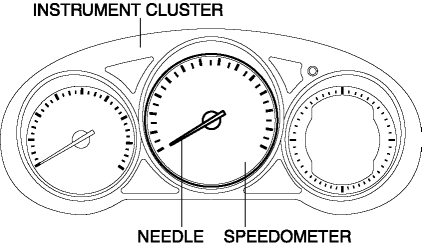

An analog needle display speedometer with a stepping motor mechanism has been adopted.

Operation

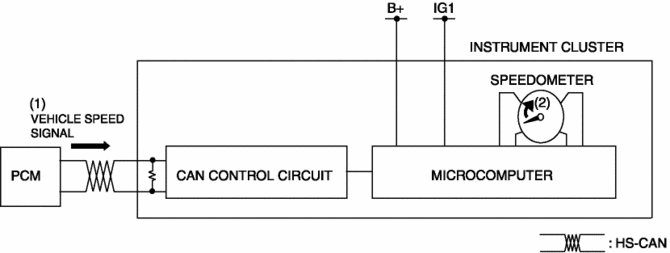

The instrument cluster receives (1) the vehicle speed signal from the PCM when the ignition is switched ON (engine on).
The instrument cluster moves the needle based on the vehicle speed signal and displays (2) the current vehicle speed.

Fail-safe

Function not equipped.
