Mazda CX-5 Service & Repair Manual: Side Turn Light Removal/Installation

Mazda CX-5 Service & Repair Manual / Body / Lighting & Horn / General / Side Turn Light Removal/Installation

1. Disconnect the negative battery cable..

2. Remove the following parts:

a. Outer mirror glass.

b. Upper outer mirror garnish.

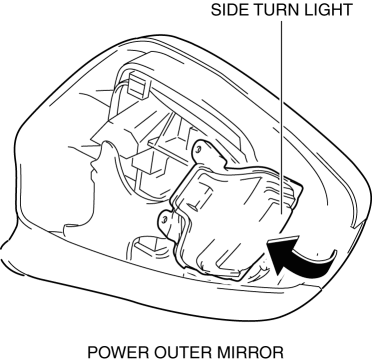

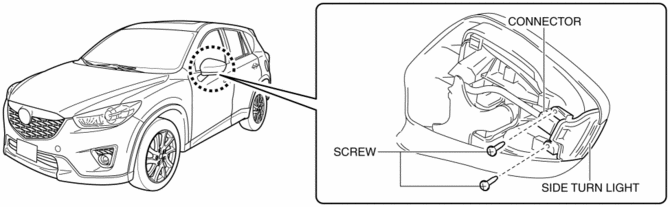

3. Remove the screws.


4. Disconnect the connector.

5. Remove the side turn light.


6. Install in the reverse order of removal.

Side Turn Light Inspection
1. Disconnect the negative battery cable.. 2. Remove the following parts: a. Outer mirror glass. b. Upper outer mirror garnish. c. Side turn light. 3. Apply battery voltage to side turn ligh ...
