Mazda CX-5 Service & Repair Manual: Side Member Removal [Panel Replacement]

Mazda CX-5 Service & Repair Manual / Body / Body Exterior, Frame / Frame / Side Member Removal [Panel Replacement]

Symbol Mark


Removal Procedure

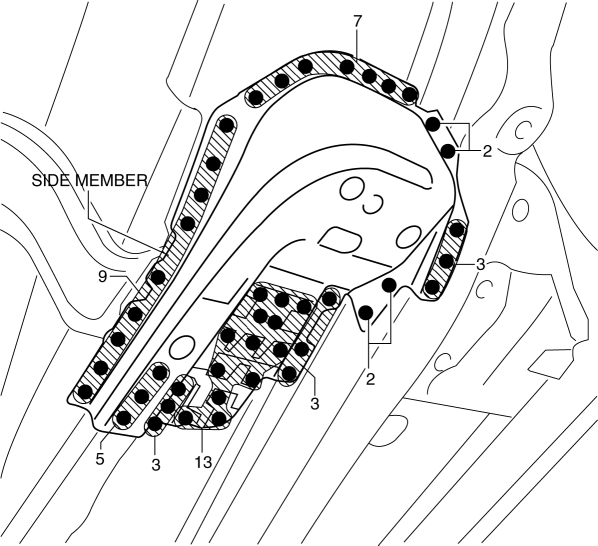

1. Drill the 45 locations shown in the figure.

NOTE:


2. Remove the side member.

Side Member Installation [Panel Replacement]
Symbol Mark Installation Procedure 1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions. 2. Drill holes for the plug welding before inst ...

Torque Box Installation [Panel Replacement]
Symbol Mark Installation Procedure 1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions. 2. Drill holes for the plug welding before inst ...
