Mazda CX-5 Service & Repair Manual: Side Air Bag Module [Standard Deployment Control System]

Mazda CX-5 Service & Repair Manual / Engine / Control / Side Air Bag Module [Standard Deployment Control System]

Purpose

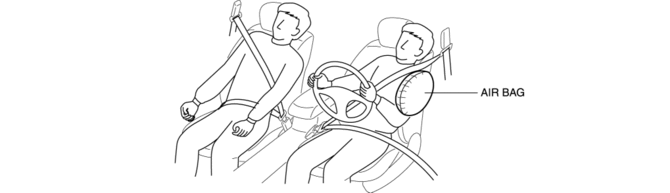

Function

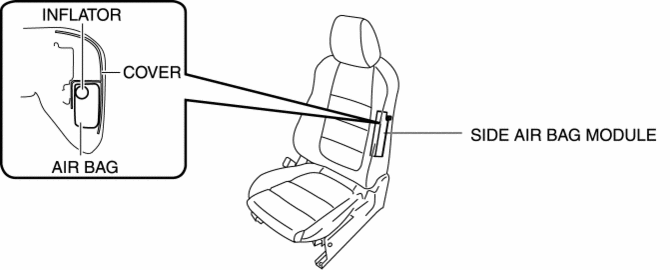

Construction


Operation

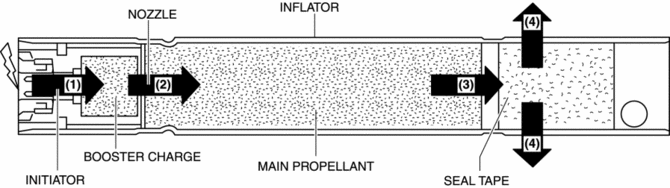

1. When an operation (deployment) signal is received from the SAS control module, the initiator built into the inflator is ignited which ignites the booster charge.


2. The high temperature gas flows into the combustion chamber from the nozzle to ignite the main propellant.

3. The seal tape is broken by the internal pressure in the combustion chamber, and the gas is sprayed out of the inflator through the diffuser (diffusion devise).

4. When the side air bag module operates (deploys), the air bag operates (deploys) while breaking open the seat back trim by the force of gas generated from the inflator.

Fail-safe

Side Air Bag Module Removal/Installation [Standard Deployment Control System]
WARNING: Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and caution ...

Side Air Bag Sensor No. 1 Removal/Installation [Standard Deployment Control System]
WARNING: Handling the side air bag sensor improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and ca ...
