Mazda CX-5 Service & Repair Manual: Shift Solenoid No.2 [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
-
Shift solenoid No.2 adjusts the hydraulic pressure in the 2-6 brake circuit based on the current demand from the TCM according to the vehicle conditions.
Construction
-

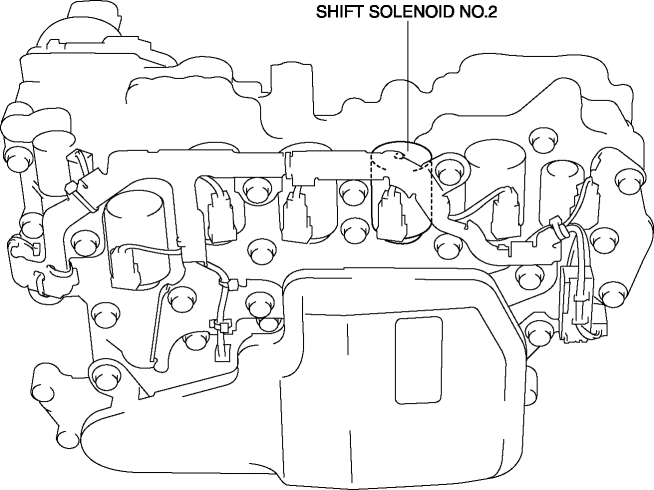

Shift solenoid No.2 is installed to the solenoid control valve body.
-
Shift solenoid No.2 is a normal closed-type linear solenoid.
Operation
-
Adjusts the 2-6 brake pressure by increasing/decreasing the energization current to shift solenoid No.2 according to the signal from the TCM.
Shift Solenoid No.1 [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
Shift solenoid No.1 adjusts the hydraulic pressure in the low clutch circuit
based on the current demand from the TCM according to the vehicle conditions.
Construction ...
Shift Solenoid No.3 [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
Shift solenoid No.3 adjusts the hydraulic pressure in the R-3-5 brake circuit
based on the current demand from the TCM according to the vehicle conditions.
Constructio ...
