Mazda CX-5 Service & Repair Manual: Shift Position Indicator Light [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
-
The shift position indicator light indicates the selector lever position.
Construction
-

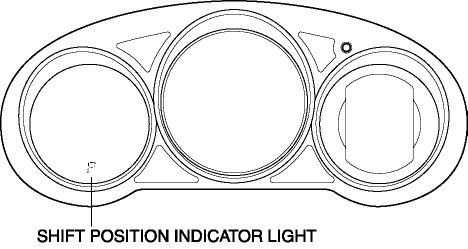

The shift position indicator light is built into the instrument cluster.
Operation
-

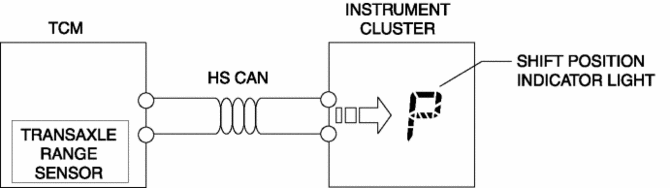

The TCM sends a shift position indicator light illumination request signal to the instrument cluster via CAN based on the signal from the integrated transaxle range sensor signal received via CAN.
Security Indicator Light
Purpose
Notifies the driver that the immobilizer system is operating.
Function
If a malfunction is detected in the immobilizer system, the DTC can be verified
by the flashing pa ...
Tcs Off Switch, Tcs Off Indicator Light
Purpose/Function
The TCS OFF switch, located on the dashboard, allows for optionally enabling/disabling
the TCS control at driver discretion.
The TCS OFF indicator light, built ...
