Mazda CX-5 Service & Repair Manual: Seal Plate Removal/Installation

Mazda CX-5 Service & Repair Manual / Body / Body Exterior, Frame / General / Seal Plate Removal/Installation

1. Disconnect the negative battery cable..

2. Remove the seal board upper..

3. Remove the front bumper..

4. Remove fasteners A.

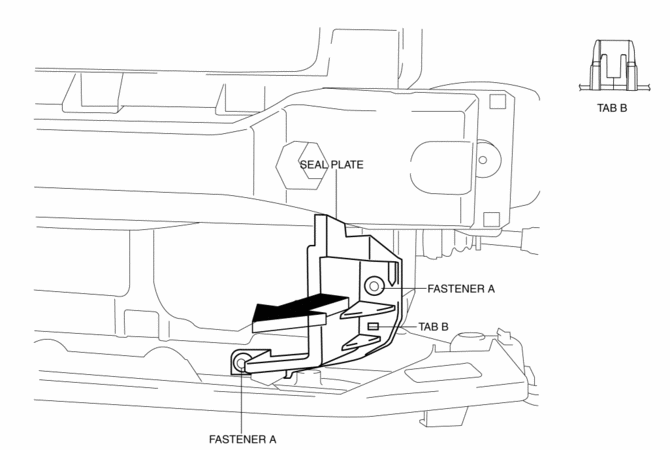

5. Remove the seal plate in the direction of the arrow shown in the figure while detaching tab B.

6. Install in the reverse order of removal.

Seal Board Upper Removal/Installation
1. Remove fasteners A. 2. Pull the seal board upper in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks B. 3. Install in the reverse order of removal. ...

Set Plate Removal/Installation
1. Disconnect the negative battery cable.. 2. Remove the seal board upper.. 3. Remove the front bumper.. 4. Remove fasteners A. 5. Remove the set plate in the direction of the arrow shown ...
