Purpose, Function

Prevents fuel from flowing into the evaporative gas passage during sudden cornering or vehicle rollover.

Construction

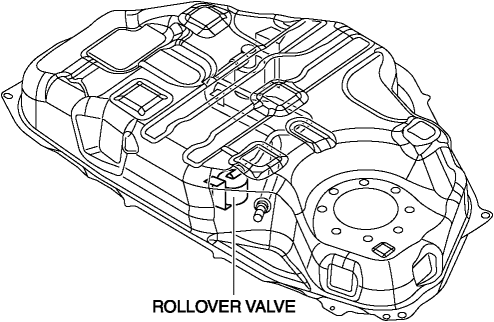

The rollover valve is built into the fuel tank.

U.S.A. and CANADA

Except U.S.A. and CANADA

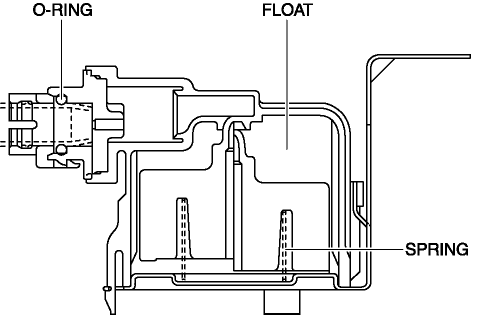

The rollover valve consists of a float, O-ring and spring.

Operation

The rollover valve utilizes a combination of float weight, spring force, and buoyancy. When the float is immersed in the fuel, the float (valve) closes to block the sealing surface of the passage.
