Mazda CX-5 Service & Repair Manual: Resonance Chamber
Purpose, Function
-
Pulsation of intake air is controlled and intake air noise is reduced by adding an intake air passage.
Construction
-

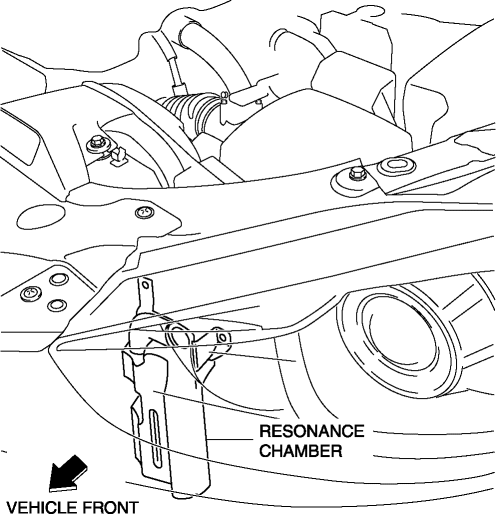

The resonance chamber is installed to fresh-air duct.
Plug Hole Plate Removal/Installation
CAUTION:
If the rubber on only one side of the plug hole plate front is lifted up,
it could damage the adapter at the location shown in the figure. When removing
the plug hole plate, lif ...
Valve Mechanism
Outline
A DOHC type valve system has been adopted and consists of four valves (two
intake valves and two exhaust valves) per cylinder for a total of 16 valves
operated by two camshafts.
...
