Mazda CX-5 Service & Repair Manual: Rear Side Panel Removal [Panel Replacement]

Mazda CX-5 Service & Repair Manual / Body / Body Exterior, Frame / General / Rear Side Panel Removal [Panel Replacement]

Symbol Mark


Removal Procedure

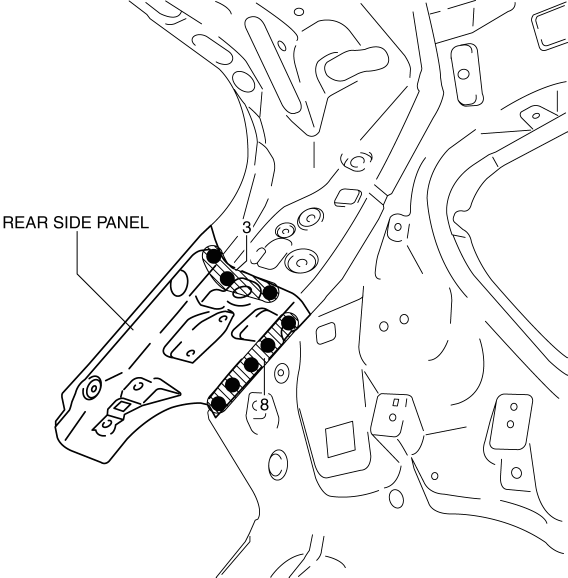

1. Drill the 11 locations shown in the figure.


2. Remove the rear side panel.

Rear Side Panel Installation [Panel Replacement]
Symbol Mark Installation Procedure 1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions. 2. Drill holes for the plug welding before inst ...

Rear Spoiler Removal/Installation
Removal WARNING: Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife. 1. Remove the liftgate upper trim. 2. Remove caps A. 3 ...
