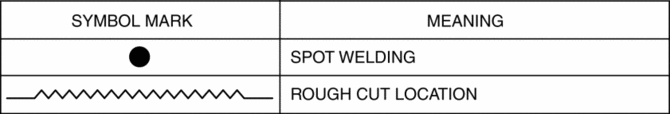

Symbol Mark

Removal Procedure

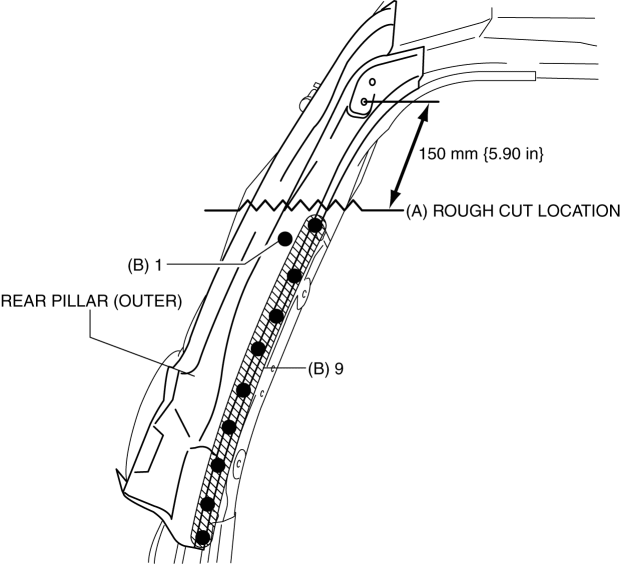

1. Rough cut area location indicated by (A) shown in the figure.
2. Drill the 10 locations indicated by (B) shown in the figure.

3. Remove the rear pillar (outer).
