Mazda CX-5 Service & Repair Manual: Rear Over Fender Removal/Installation

Mazda CX-5 Service & Repair Manual / Body / Body Exterior, Frame / General / Rear Over Fender Removal/Installation

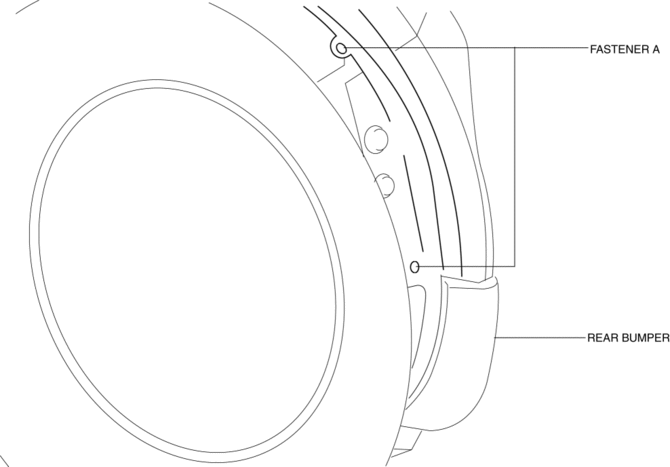

1. Remove fasteners A.


2. Pull the rear over fender in the direction of the arrow while removing clips B.


3. Install in the reverse order of removal.

Rear Fender Panel Removal [Panel Replacement]
Symbol Mark Removal Procedure CAUTION: Avoid cutting with a blowtorch or similar tools as the insulator (shaded area) is flammable. 1. Rough cut the 3 locations indicated by ...

Rear Sash Molding Installation
WARNING: Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife. NOTE: Double-sided adhesive tape has already been attached to t ...
