Purpose, Function

The rear mount camera shoots the conditions at the rear of the vehicle in color, and after converting the video signal, it outputs the signal to the audio unit. (with color LCD)

Construction

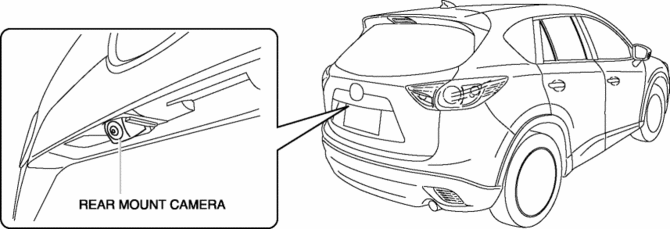

The rear mount camera is installed onto the liftgate.

A super-wide angle lens which can shoot images in a wide parameter is assembled to the compact (1/3.6 in), color CMOS camera which has a high precision CMOS *1 imaging element.

*1 Complementary Metal-Oxide Semiconductor

Operation

For the rear mount camera operation, refer to the PARK ASSIST SYSTEM

Fail-safe

Function not equipped.
