Removal Procedure

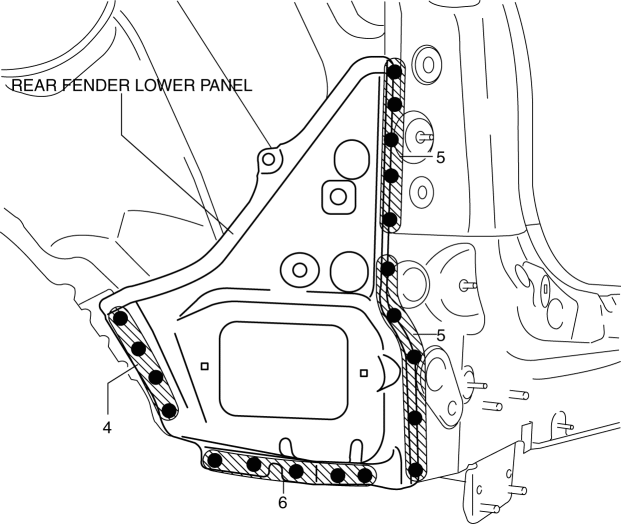

1. Drill the 20 locations shown in the figure.


2. Remove the rear fender lower panel.

Rear Fender Lower Panel Installation [Panel Replacement]
Symbol Mark Installation Procedure 1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions. 2. After temporarily installing new parts, make ...

Rear Fender Panel Installation [Panel Replacement]
Symbol Mark Installation Procedure 1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions. 2. Drill holes for the plug welding before inst ...
