Mazda CX-5 Service & Repair Manual: Rear Drive Shaft
Purpose, Function
-
Engine noise and vibration have been reduced due to adoption of a bell joint on the wheel side of the constant velocity joint.
-
A low noise and vibration double offset joint with low slide resistance has been adopted for the differential side of the constant velocity joint. Due to this booming resonance at high speed is reduced.
-
An extremely durable plastic has been adopted for the wheel side boot.

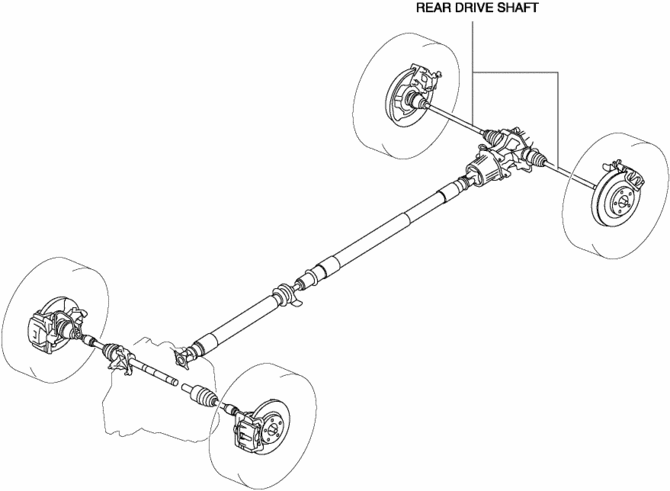

Structural View
Propeller Shaft Removal/Installation
CAUTION:
If the constant velocity joint is bent during propeller shaft removal/installation
or transportation after servicing, the constant velocity joint boot may contact
the metallic c ...
Rear Drive Shaft Disassembly/Assembly
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
1
Boot band (differential side)
(See Boot Band (Differential Sid ...
