Mazda CX-5 Service & Repair Manual: Rear Center Seat Belt Removal/Installation
CAUTION:
-
The ELR (emergency locking retractor) has a spring that will unwind if the retractor cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.

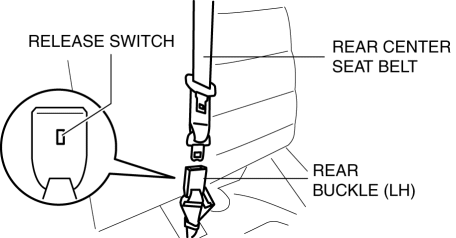

1. Press the release switch, then disconnect the rear center seat belt and rear buckle.
2. Remove the rear center seat belt with the rear seat back..
3. Install in the reverse order of removal..
Rear Center Seat Belt Installation Note

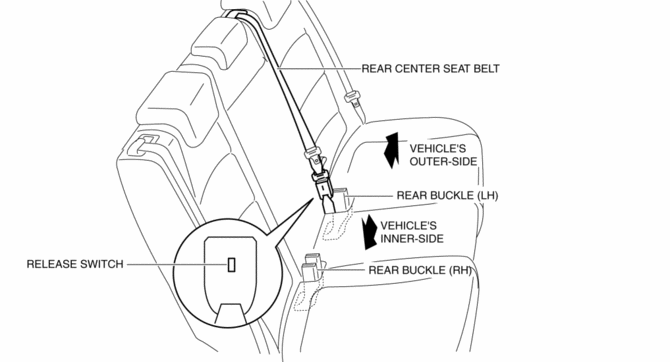

1. After installing the rear center seat belt, place the release switch of the rear buckle so that it faces the vehicle’s inner-side as shown in the figure.
