Mazda CX-5 Service & Repair Manual: R 3 5 Brake [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
-

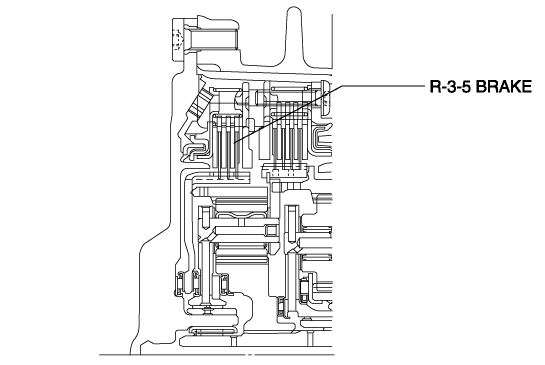

The R-3-5 brake operates in 3GR, 5GR and in reverse to lock the reduction internal gear against rotation.
Construction
-

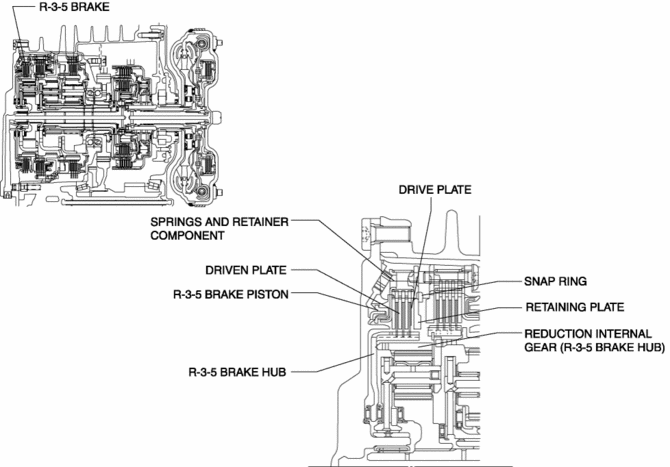

The R-3-5 brake consists of the following parts shown in the figure.
-

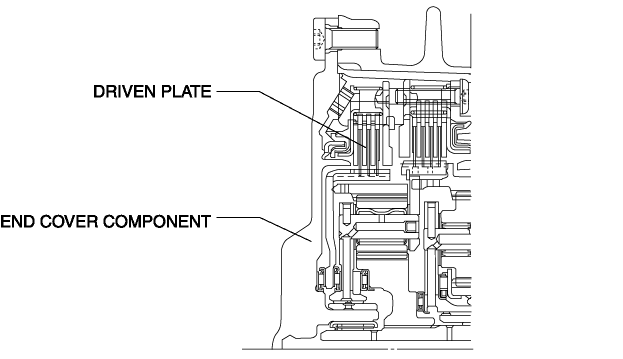

The driven plate of the R-3-5 brake does not rotate because it is connected to the end cover component.
-
The R-3-5 brake drive plate is engaged with the R-3-5 brake hub and reduction internal gear, and locks the reduction internal gear.
-
For the R-3-5 brake piston, a compact and highly reliable bonded seal piston has been adopted in which the piston and seal are molded together.
Operation
-
When hydraulic pressure is applied to the R-3-5 brake piston, the drive plate and driven plate are pressure bonded to lock the reduction internal gear.
