1. Measure the propeller shaft center runout using the dial gauge.
-
If it exceeds the maximum specification, replace the propeller shaft as a single component.
-
Propeller shaft maximum runout
-
0.8 mm {0.031 in}

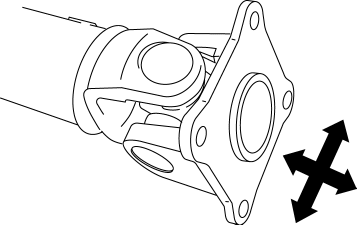

2. Inspect the play and rotation of the joint by turning the universal joint in the directions shown by the arrows.
-
If it is not within the specification, replace the propeller shaft.
-
Propeller shaft rotation torque
-
0.29—1.47 N·m {3.0—14.9 kgf·cm, 2.6—13.0 in·lbf}
Intermediate Shaft Removal/Installation
WARNING:
The steering column (EPS motor) temperature increases directly after continuous
turning of the steering mechanism which could cause burns if it is touched.
Before performing any ...
Propeller Shaft On Vehicle Inspection
Joint Area Excessive Play Inspection
1. Shake the universal joint by hand and verify that there is no excessive play.
2. If there is any excessive play, replace the propeller shaft..
Propell ...
