Mazda CX-5 Service & Repair Manual: Primary Gear [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
-
The primary gear transmits the drive force converted by the 3-piece planetary gear to the secondary gear.
Construction
-

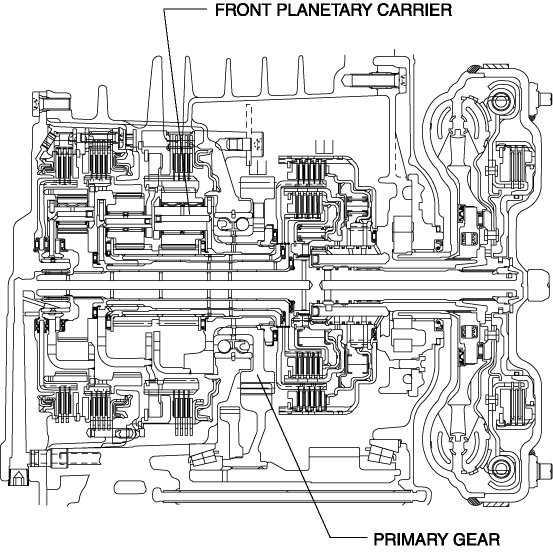

The primary gear is engaged with the front planetary carrier and rotates as a single unit.
Pressure Control Solenoid [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
The pressure control solenoid adjusts the pressure control solenoid pressure
and controls the line pressure based on the control signal from the TCM.
Construction
...
Reduction Gear
Purpose/ Function
The reduction gear transmits the rotation input from the EPS motor, decreasing
the rotation speed and increasing the torque simultaneously.
Construction
The re ...
