Mazda CX-5 Service & Repair Manual: Pressure Control Solenoid [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
-
The pressure control solenoid adjusts the pressure control solenoid pressure and controls the line pressure based on the control signal from the TCM.
Construction
-

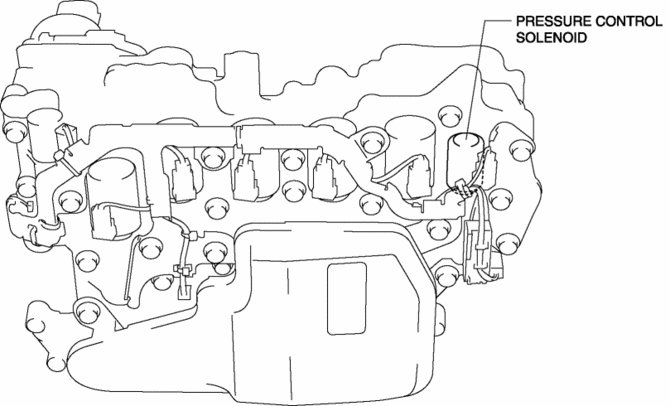

The pressure control solenoid is installed to the solenoid control valve body.
-
The pressure control solenoid is a normal open-type linear solenoid.
Operation
-
Adjusts the pressure control solenoid pressure by increasing/decreasing the energization current to the pressure control solenoid according to the signal from the TCM.
Powertrain System [C66 M R]
Purpose, Function
The powertrain mechanism changes the gear combination by engaging or releasing
the clutch hub and gear, and changes the power transmission route. Because of
the change i ...
Primary Gear [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
The primary gear transmits the drive force converted by the 3-piece planetary
gear to the secondary gear.
Construction
The primary gear is engaged with the fron ...
