Mazda CX-5 Service & Repair Manual: Presilencer
Purpose, Function
-
Reduces the exhaust noise.
Construction
-

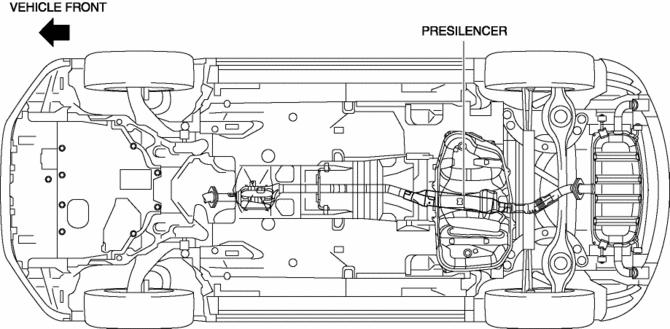

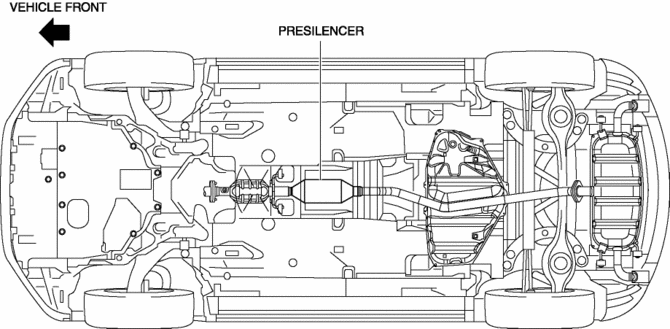

The presilencer is installed to the rear of the TWC.
2WD
AWD
-

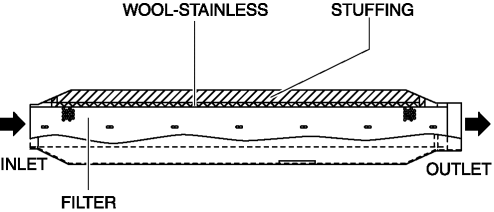

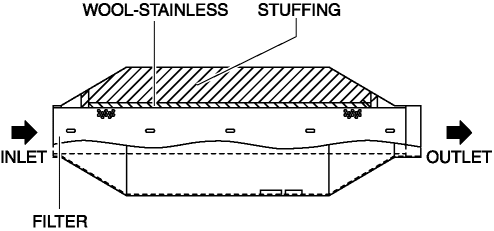

The presilencer consists of the filters, stuffing and wool-stainless.
2WD
AWD
Main Silencer
Purpose, Function
Reduces the exhaust noise.
Construction
The main silencer is installed to the vehicle rear, under the trunk compartment.
2WD
AWD
The main ...
