Mazda CX-5 Service & Repair Manual: Power Seat Switch Removal/Installation
WARNING:
-
Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated)..
1. Switch the ignition off (LOCK).
2. Disconnect the negative battery cable and wait for 1 min
..

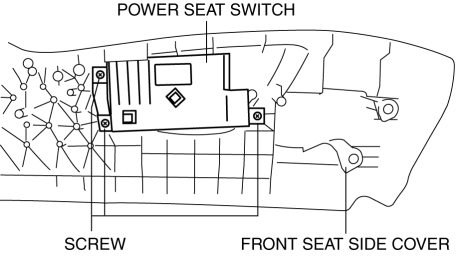

3. Remove the front seat side cover..
4. Remove the screws.
5. Remove the power seat switch.
6. Install in the reverse order of removal.
