Mazda CX-5 Service & Repair Manual: Power Seat Switch Inspection
WARNING:
-
Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated)..
1. Switch the ignition off (LOCK).
2. Disconnect the negative battery cable and wait for 1 min
..
3. Remove the front seat side cover..
4. Remove the power seat switch..
5. Connect the power seat switch connector.

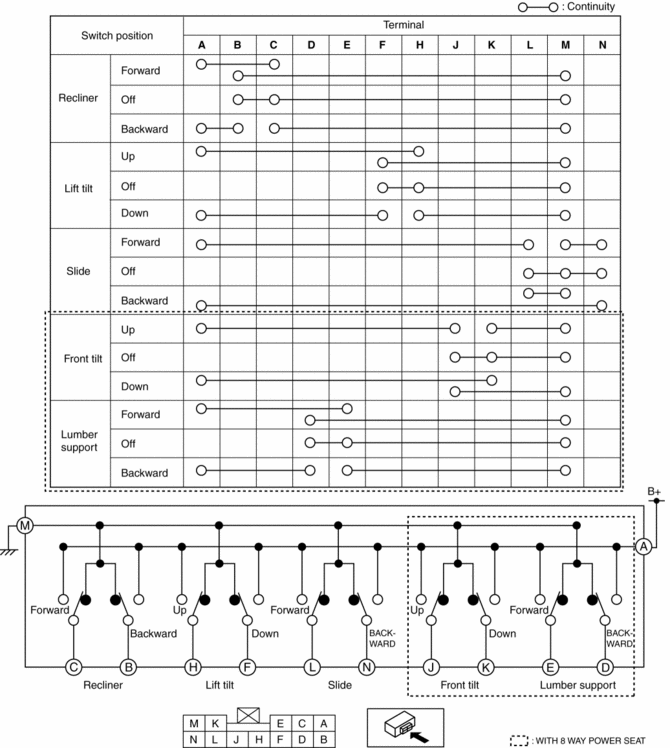

6. Inspect for continuity between the power seat switch connector terminals using an ohmmeter.
-
If not as specified, replace the power seat switch..
