Mazda CX-5 Service & Repair Manual: Power Brake Unit
Purpose/Function
-

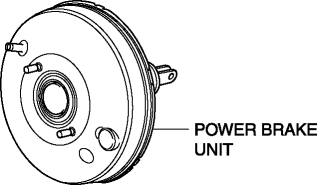

A 9.8-inch, single diaphragm type power brake unit has been adopted, achieving compatibility between high braking performance and excellent brake feeling.
Construction
-
The power brake unit cannot be disassembled. Therefore, if there is any malfunction in the power brake unit, replace the power brake unit without disassembling.
Operation
-
The depression force of the brake pedal is increased using the vacuum from the vacuum pump, and the force is transmitted to the master cylinder.
Master Cylinder Removal/Installation
1. Remove the battery..
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. After installation, add brake fluid, bleed the air, and inspect for fluid
...
Power Brake Unit Inspection
NOTE:
The following inspection methods are simple inspection methods to judge the
function of the power brake unit.
If there is any malfunction in the power brake unit, replace the ...
