Mazda CX-5 Service & Repair Manual: Positive Crankcase Ventilation (PCV) Valve
Purpose, Function
-
Prevents release of blow-by gas (unburnt gas) into the atmosphere.
-
The PCV valve is open/closed by the intake manifold vacuum.
Construction
-

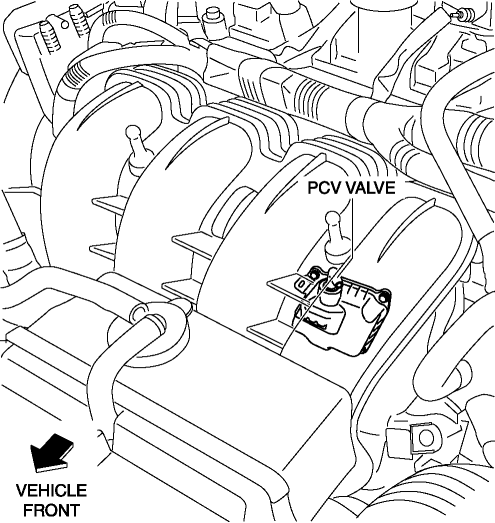

The PCV valve is installed to the oil separator.
-

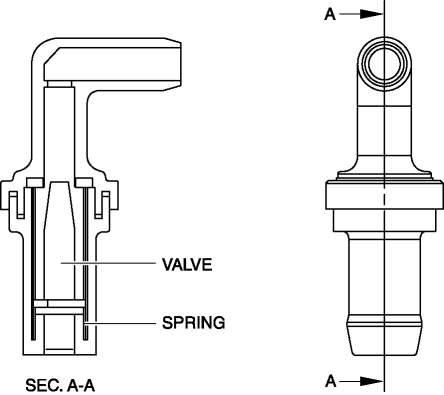

The PCV valve consists of a spring and valve.
Operation
-

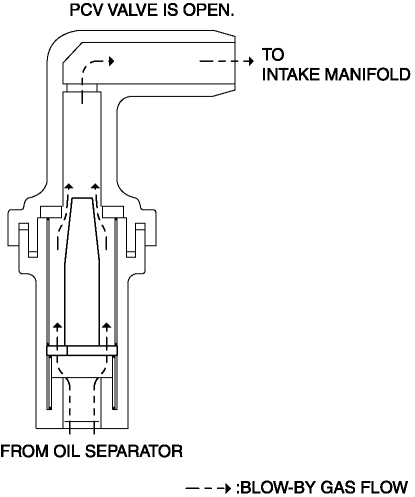

When the valve is pulled by the intake manifold vacuum, blow-by gas flows to the intake manifold.
-
Blow-by gas flow amount is adjusted by the spring according to the intake manifold vacuum.
Positive Crankcase Ventilation (PCV) Valve Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the intake manifold..
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
1
...
Purge Solenoid Valve Inspection
Airflow Inspection
1. Disconnect the negative battery cable..
2. Remove the purge solenoid valve..
3. Inspect airflow between the ports under the following conditions.
...
