Mazda CX-5 Service & Repair Manual: Passenger Compartment Temperature Sensor [Full Auto Air Conditioner]
Purpose
-
The passenger compartment temperature sensor detects the cabin temperature.
Function
-
The passenger compartment temperature sensor converts the detected temperature to an electric signal.
Construction
-
A thermistor-type passenger compartment temperature sensor has been adopted.
-
The passenger compartment temperature sensor is installed to the lower panel (driver’s side).
Construction/operation
-
The thermistor changes the resistance according to the surrounding temperature.
-

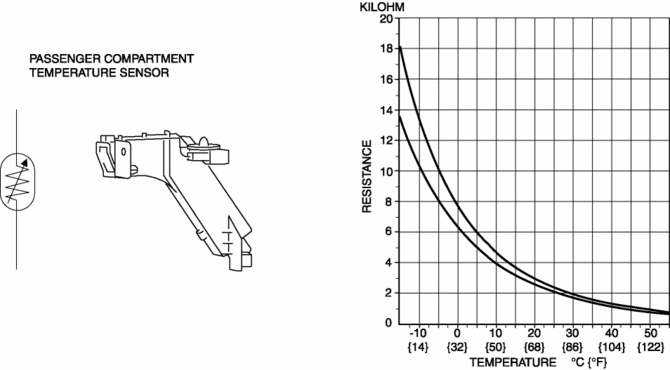

The resistance decreases if the temperature increases, and conversely increases if the temperature decreases as shown in the figure.
Fail-safe
-
Function not equipped.
Passenger Compartment Temperature Sensor Removal/Installation [Full Auto Air
Conditioner]
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Front scuff plate (driver-side).
b. Front side trim (driver-side).
c. Switch panel.
d. Decoration panel.
e. Shi ...
Power Metal Oxide Semiconductor Field Effect Transistor (Power Mos Fet) Removal/Installation
[Full Auto Air Conditioner]
NOTE:
When removing the power MOS FET, perform the procedure in the posture shown
in the figure.
1. Disconnect the negative battery cable..
2. Remove the dashboard under cover ...
