Heated Outer Mirror
1. Disconnect the negative battery cable..
2. Remove the outer mirror glass..

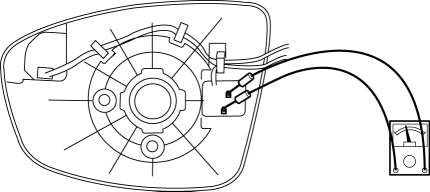

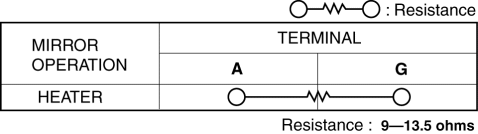

3. Verify that the resistance and continuity between the heated outer mirror terminals is as indicated in the table.
-
If not as indicated in the table, or if the resistance is not within the specification, replace the outer mirror glass.
Blind spot monitoring (BSM) warning indicator light
1. Disconnect the negative battery cable..
2. Remove the outer mirror glass..

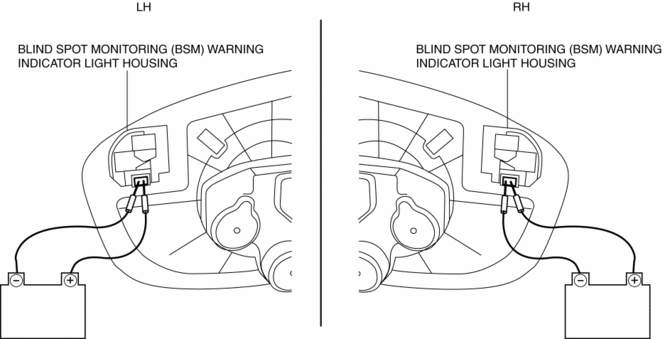

3. Connect the battery voltage as shown in the figure.
-
If the blind spot monitoring (BSM) warning indicator light does illuminate, replace the power outer mirror.
Outer Mirror Garnish Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the outer mirror glass..
3. Insert a tape-wrapped flathead screwdriver into the upper outer mirror garnish
and remove tab A, B, C, D in the d ...
Outer Mirror Glass Installation
1. Connect the mirror heater connectors. (with heated outer mirror)
2. Connect the blind spot monitoring (BSM) warning indicator light connector
(with blind spot monitoring system).
NOTE:
...
