Mazda CX-5 Service & Repair Manual: Outer Mirror Garnish Removal/Installation

Mazda CX-5 Service & Repair Manual / Body / Mirrors / Outer Mirror Garnish Removal/Installation

1. Disconnect the negative battery cable..

2. Remove the outer mirror glass..

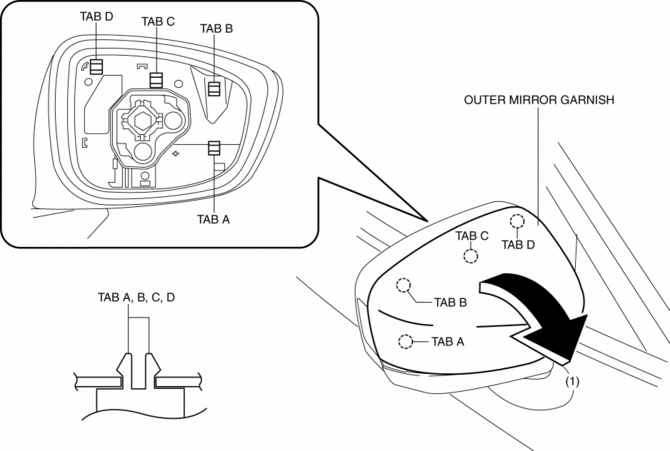

3. Insert a tape-wrapped flathead screwdriver into the upper outer mirror garnish and remove tab A, B, C, D in the direction of arrow (1).

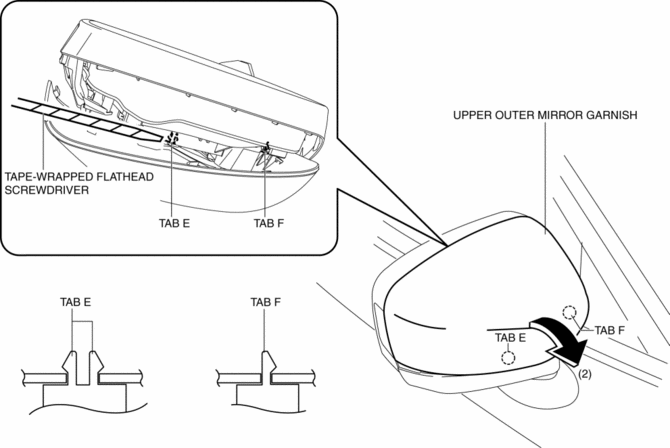

4. Insert a tape-wrapped flathead screwdriver into the upper outer mirror garnish and remove tab F, G in the direction of arrow (2).


5. Install in the reverse order of removal.

Mirror Base Removal
1. Disconnect the negative battery cable.. 2. Remove the rearview mirror. (without auto-dimming mirror). 3. Remove the auto-dimming mirror. (with auto-dimming mirror). 4. Wind each end of a wire ...

Outer Mirror Glass Inspection
Heated Outer Mirror 1. Disconnect the negative battery cable.. 2. Remove the outer mirror glass.. 3. Verify that the resistance and continuity between the heated outer mirror terminals is as in ...
