Mazda CX-5 Service & Repair Manual: Oil Cooler
Purpose, Function
-
The oil cooler routes engine oil and engine coolant through the interior and disperses the engine oil heat using the engine coolant. As a result, the oil temperature is maintained properly to reduce the engine oil deterioration.
Construction
-

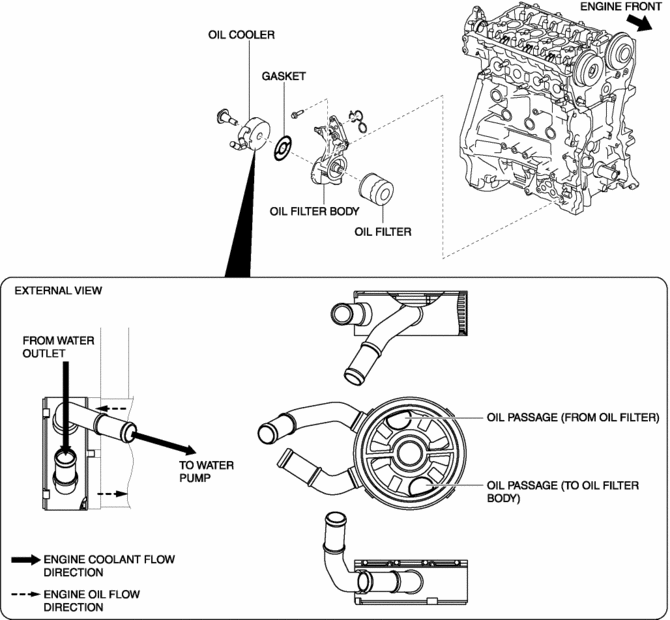

A 9-layered type water-cooled has been adopted.
-
The oil cooler is attached to the oil filter body.
Oil Cooler [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
The oil cooler constantly maintains maximum ATF performance in the transaxle
by maintaining an optimum ATF temperature which has the effect of achieving
