Mazda CX-5 Service & Repair Manual: Manual Transaxle Oil Replacement [C66 M R]
1. Park the vehicle on level ground.

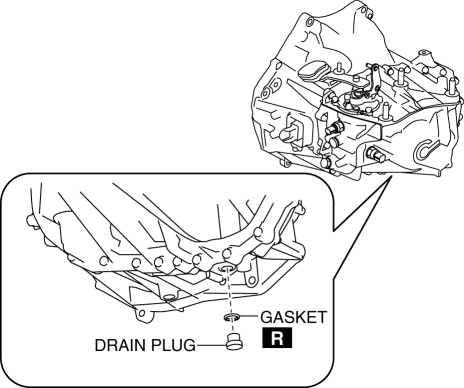

2. Remove the front under cover No.2..
3. Remove the drain plug and gasket, and drain the manual transaxle oil.
4. Install a new gasket and the drain plug.
-
Tightening torque
-
39—59 N·m {4.0—6.0 kgf·m, 29—43 ft·lbf}
5. Remove the oil level plug and gasket.
6. Add the specified manual transaxle oil through the oil level plug port.
-
Manual transaxle oil grade
-
API service GL-4
-
Manual transaxle oil viscosity
-
SAE 75W-80
-
Manual transaxle oil capacity (approx. quantity)
-
1.65 L {1.74 US qt, 1.45 lmp qt}
7. Install a new gasket and the oil level plug.
-
Tightening torque
-
39—59 N·m {4.0—6.0 kgf·m, 29—43 ft·lbf}
8. Install the front under cover No.2..
Manual Transaxle Oil Inspection [C66 M R]
1. Park the vehicle on level ground.
2. Remove the front under cover No.2..

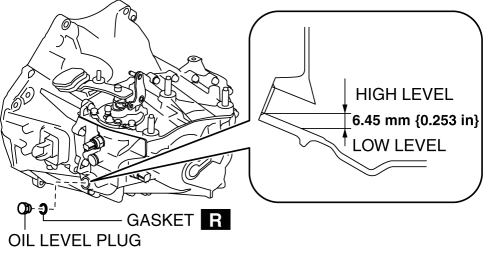

3. Remove the oil level plug and gasket.
4. Verify that the manual transaxle oil is near the brim of the plug port ...
Manual Transaxle Removal/Installation [C66 M R]
Removal
1. Disconnect the negative battery cable..
2. Remove the plug hole plate..
3. Remove the front under cover No.2..
4. Remove the front under cover No.1..
5. Remove the splash shield.. ...
