Mazda CX-5 Service & Repair Manual: Manifold Absolute Pressure (Map) Sensor Inspection

Mazda CX-5 Service & Repair Manual / Engine / Intake / Manifold Absolute Pressure (Map) Sensor Inspection

Voltage Inspection

1. Connect the M-MDS to the DLC?2.

2. Switch the ignition ON (engine off or on).

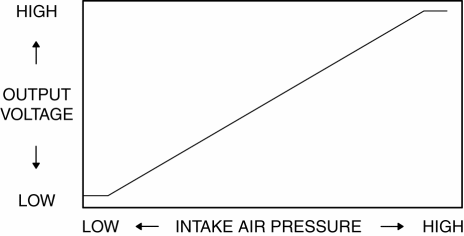

3. Verify that the MAP sensor output voltage (PID: MAP) is within the specification..

Specification
