Mazda CX-5 Service & Repair Manual: Main Silencer
Purpose, Function
-
Reduces the exhaust noise.
Construction
-

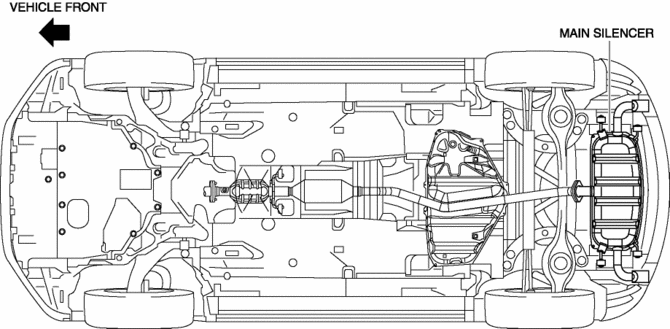

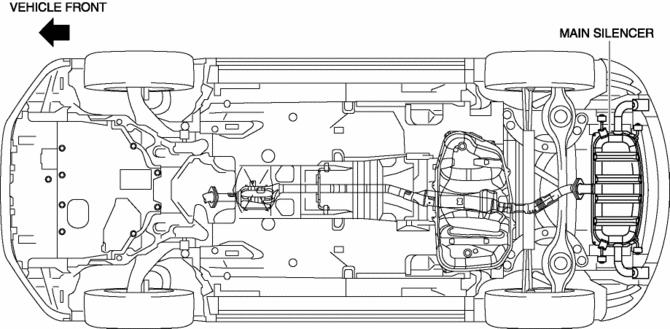

The main silencer is installed to the vehicle rear, under the trunk compartment.
2WD
AWD
-

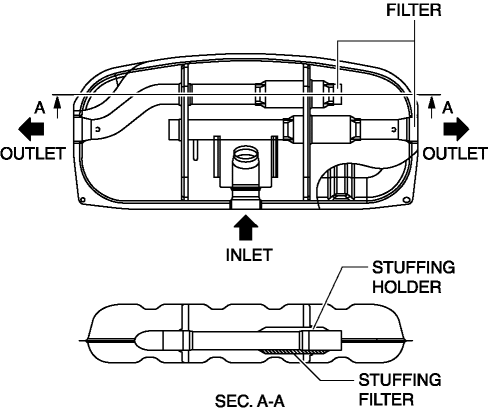

The main silencer consists of the filters, holder, set plates and stiffener.
Exhaust System
Purpose, Outline
A 4-2-1 exhaust system has been adopted which reduces residual gas in the
cylinders using the scavenging effect and contributes to a high compression
ratio.
The l ...
Presilencer
Purpose, Function
Reduces the exhaust noise.
Construction
The presilencer is installed to the rear of the TWC.
2WD
AWD
The presilencer consists of the filte ...
