Mazda CX-5 Service & Repair Manual: Main Relay [Skyactiv G 2.0]
Purpose/Function
-
Supplies power to each part.
-
Supplies battery voltage to each part based on the signals from the PCM even though the ignition is switched on or off.
Construction
-

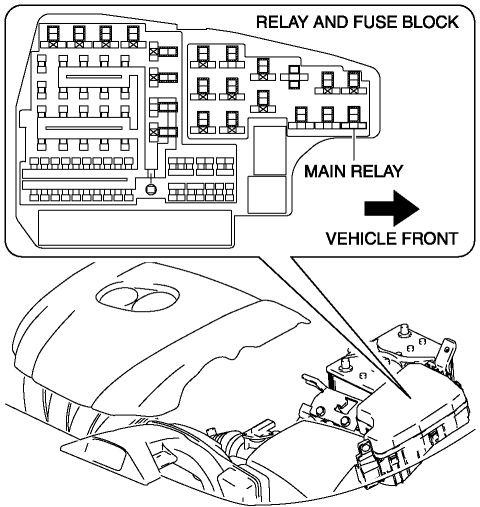

Installed to the relay and fuse block.
Operation
-

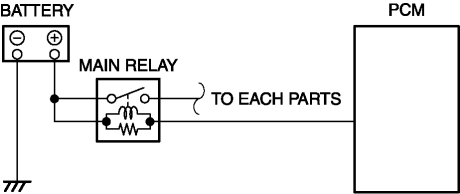

After the contact point is on battery voltage is supplied to the coil based on the signals from the PCM.
Fail-safe
-
Function not equipped.
Main Fuse Removal/Installation
1. Disconnect the negative battery cable..
2. Insert a tape-wrapped flathead screwdriver into the service hole in the position
shown in the figure.
3. Move the flathead screwdriver in the di ...
Relay Inspection
Relay Type
Connector type
Part name
Type A
TNS relay
A/C relay
Headlight HI relay
Hea ...
