Mazda CX-5 Service & Repair Manual: Magnetic Clutch Inspection [Full Auto Air Conditioner]

Mazda CX-5 Service & Repair Manual / HVAC / A/C / Magnetic Clutch Inspection [Full Auto Air Conditioner]

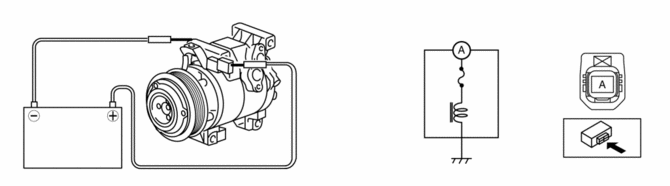

1. Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.


2. Verify that the magnetic clutch operates.

Magnetic Clutch Disassembly/Assembly [Manual Air Conditioner]
1. Disassemble in the order indicated in the table. 1 Bolt (See Bolt Removal/Installation Note.) 2 Pressure plate 3 ...

Magnetic Clutch Inspection [Manual Air Conditioner]
1. Connect battery to terminal A of magnetic clutch and ground to A/C compressor body. 2. Verify that the magnetic clutch operates. If there is any malfunction, replace the magnetic cl ...
