Mazda CX-5 Service & Repair Manual: Magnet Clutch [Manual Air Conditioner]
Purpose
-
The magnetic clutch transmits the rotation force from the engine to the shaft in the A/C compressor.
Function
-
The magnetic clutch engages or disengages the magnetic clutch and the A/C turns on or off by switching the power transmission from the engine.
Construction
-
The magnetic clutch is installed to the A/C compressor.
-
The magnetic clutch consists of the following parts:
-
Pressure plate
-
A/C compressor pulley
-
Stator
-
Snap ring
-
Shim

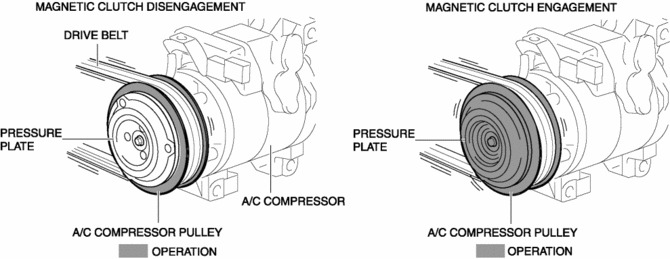

Operation

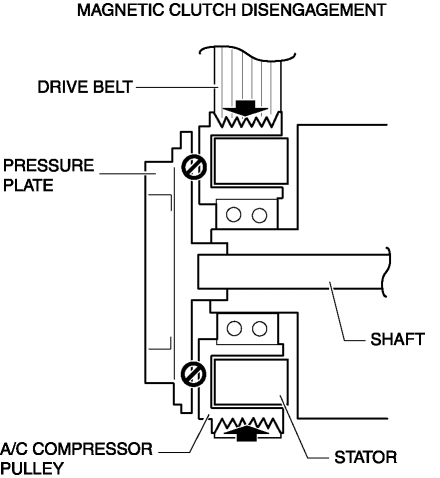

Magnetic clutch disengagement
1. If there is no energization in the magnetic clutch stator from the A/C relay, the pressure plate cannot be engaged with the A/C compressor pulley because the magnetic clutch stator does not operate.
2. The rotation force from the drive belt is only transmitted to the A/C compressor pulley and the pulley spins.

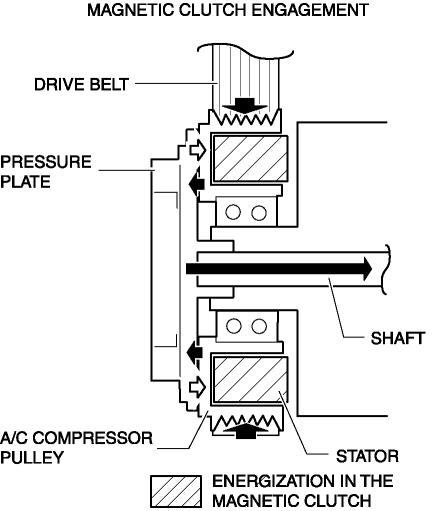

Magnetic clutch engagement
1. If there is energization in the magnetic clutch stator from the A/C relay, the magnetic clutch stator operates and the pressure plate is engaged with the A/C compressor pulley.
2. The rotation force from the drive belt is transmitted to the compressor shaft through the pressure plate from the A/C compressor pulley.
Fail-safe
-
Function not equipped.
