Mazda CX-5 Service & Repair Manual: Liftgate Recess Removal/Installation

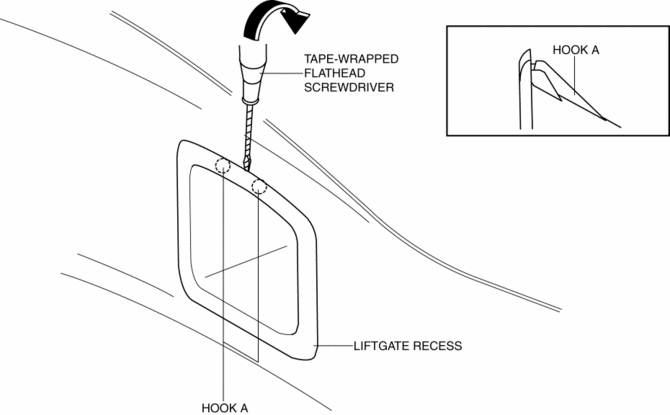

1. Insert a tape-wrapped flathead screwdriver in the position indicated by the arrow in the figure and detach hooks A.

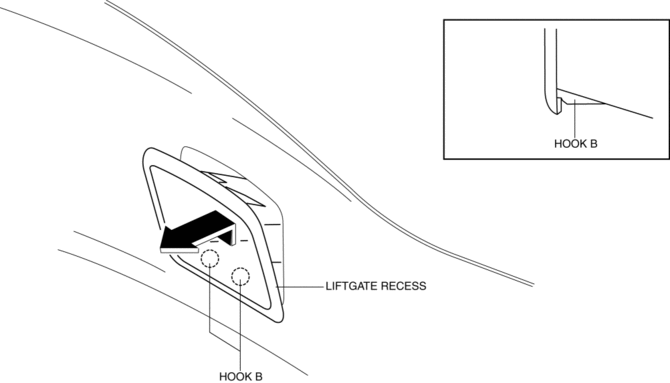

2. Remove the liftgate recess in the direction of the arrow shown in the figure avoiding hooks B.
3. Install in the reverse order of removal.
Liftgate Opener System
Outline
A liftgate opener system has been adopted in which the liftgate can be opened
just by pressing the liftgate opener switch.
The rear body control module (RBCM) performs liftga ...
Liftgate Removal/Installation
WARNING:
Removing the stay damper, liftgate hinge securing bolt, or liftgate without
supporting the liftgate may cause the liftgate to fall off and injure you. When
removing the stay dam ...
