Purpose

The license plate lights shine light on the license plate during nighttime driving.

Function

The license plate lights illuminate in conjunction with the operation of the light switch.

Construction

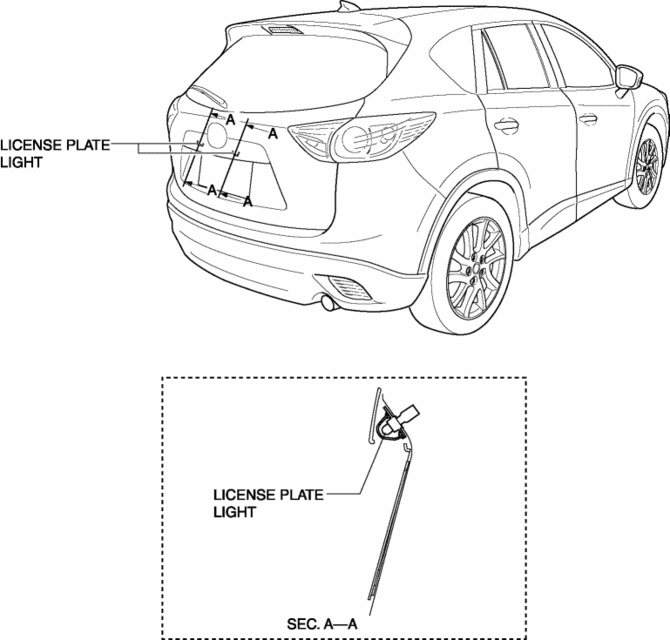

The license plate lights are installed to the liftgate.

Operation

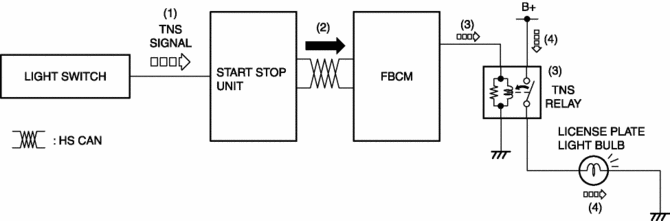

1. When the light switch is operated to the TNS position, a TNS signal is input to the start stop unit.

2. The start stop unit sends the TNS signal to the front body control module (FBCM).

3. When the front body control module (FBCM) receives the TNS signal, it turns the TNS relay on.

4. When the TNS relay turns on, the license plate bulbs are illuminated.

Fail-safe

Function not equipped.

High Mount Brake Light Removal/Installation

1. Disconnect the negative battery cable.. 2. Remove the liftgate upper trim.. 3. Remove the rear spoiler.. 4. Disconnect the connector. 5. While pressing the high-mount brake light tab in ...

License Plate Light Bulb Removal/Installation

1. Disconnect the negative battery cable.. 2. Insert a tape-wrapped flathead screwdriver into the clearance between the lens and license plate light shown in the figure. 3. Move the flathead ...
