Mazda CX-5 Service & Repair Manual: Keyless Antenna [Keyless Entry System]
Purpose
-
Outputs a request signal and specifies the remote transmitter location.
Function
-
The keyless antennas output request signals based on the signals from the start stop unit.
Construction, Operation
-

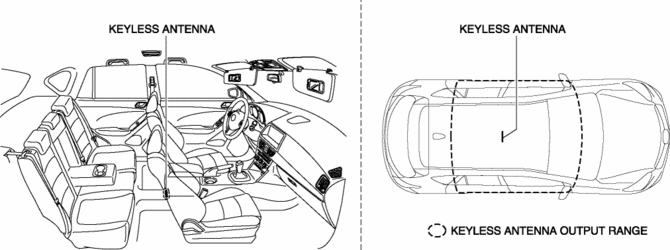

Request signals are output by the keyless antenna installed in the rear console to produce the keyless antenna output range inside the vehicle.
Fail-safe
-
Function not equipped.
Keyless Antenna [Advanced Keyless Entry System]
Purpose
Outputs a request signal and specifies the remote transmitter location.
Function
The keyless antenna outputs request signals to the inside and outside of
the vehicle bas ...
Rear Door Speaker Inspection
1. Disconnect the negative battery cable..
2. Remove the rear door trim..
3. Disconnect the rear door speaker connector..
4. Verify that the resistance between the rear door speaker terminals is ...
