Mazda CX-5 Service & Repair Manual: Keyless Antenna [Advanced Keyless Entry System]
Purpose
-
Outputs a request signal and specifies the remote transmitter location.
Function
-
The keyless antenna outputs request signals to the inside and outside of the vehicle based on the signals from the LF control unit.
Construction, Operation
-

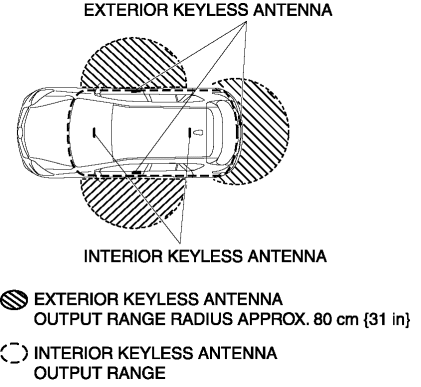

The antennas for request signal output form the request signal output range at 5 locations.
Request signal output range
-
The keyless antennas for the vehicle exterior (driver-side, passenger-side, rear) form the request signal output area in the range of an approx. 80 cm {31 in}
radius from each location and communicate with the advanced key.
-
The keyless antennas for the vehicle interior (front, rear) form the output range inside the vehicle.
Fail-safe
-
Function not equipped.

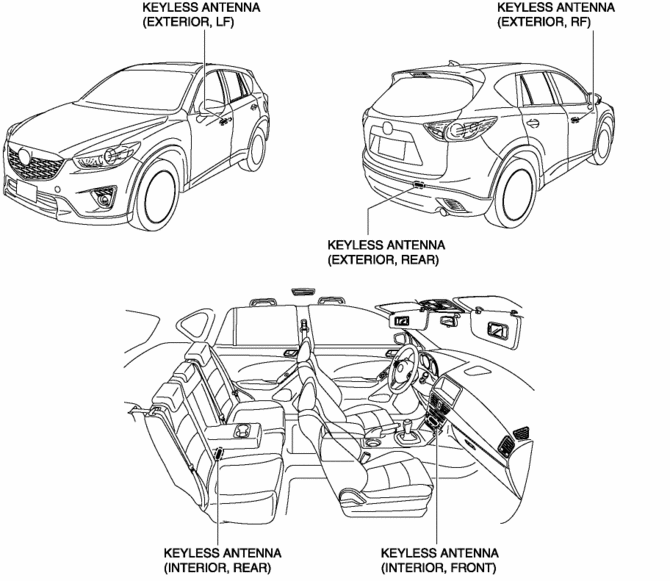

Keyless Antenna Removal/Installation
With Advanced Keyless Entry System
Vehicle interior, front
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Decoration panel.
b. Shift lever knob (MTX).
c. Front ...
Keyless Antenna [Keyless Entry System]
Purpose
Outputs a request signal and specifies the remote transmitter location.
Function
The keyless antennas output request signals based on the signals from the
start stop uni ...
