Jacking Positions
WARNING:
-

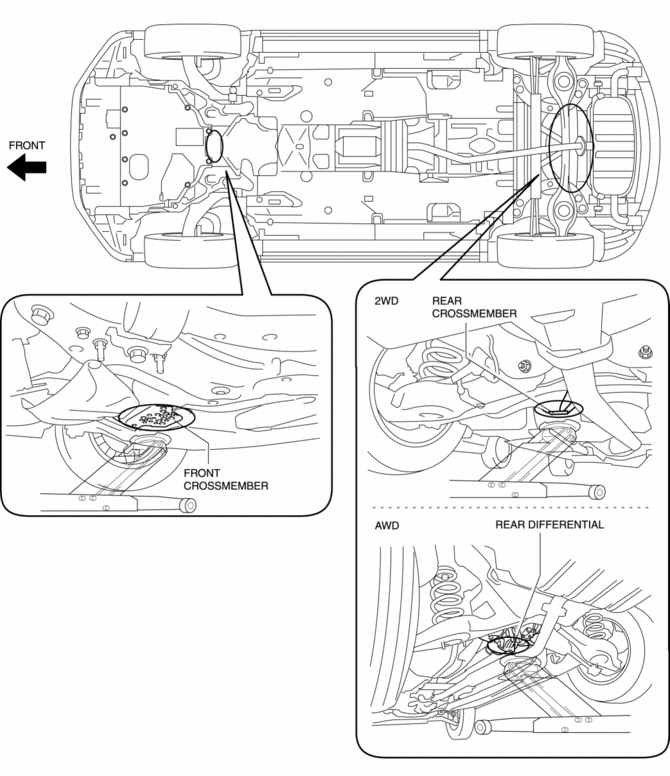

Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.
CAUTION:
-
Use safety stands to support the vehicle after it has been lifted.
NOTE:
-
To prevent obstruction between the jack body and front bumper when the jack body is inserted, use a low-floor type jack.
Vehicle Lift Positions
WARNING:
-
Lifting a vehicle is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of support at the end of the arm of the lift.

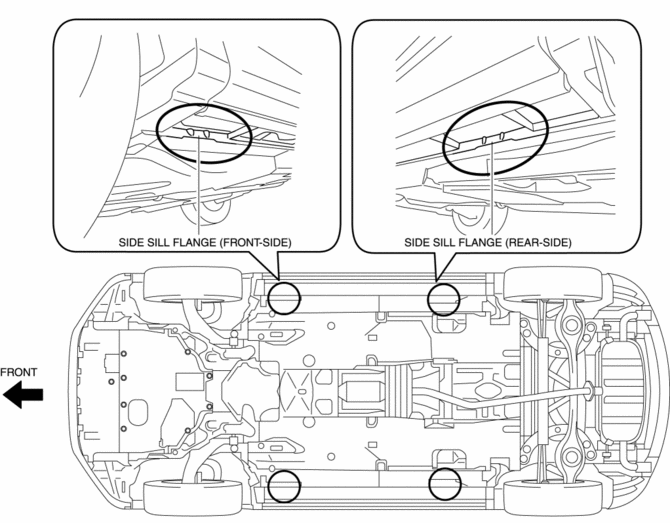

Front and rear
-
Both sides of the vehicle, on side sills.
Identification Number Locations
Vehicle Identification Number (VIN)
If the VIN plate is adhered to the dashboard, it is located in the position
shown in the figure.
Engine Type/Number
SKYACTIV-G 2.0
SKYAC ...
