Mazda CX-5 Service & Repair Manual: Interior Lighting System
Outline
-
A room light control system has been adopted in which illumination time and illumination level of the interior lights change.
-
The rear body control module (RBCM) performs room light control system fail-safe..

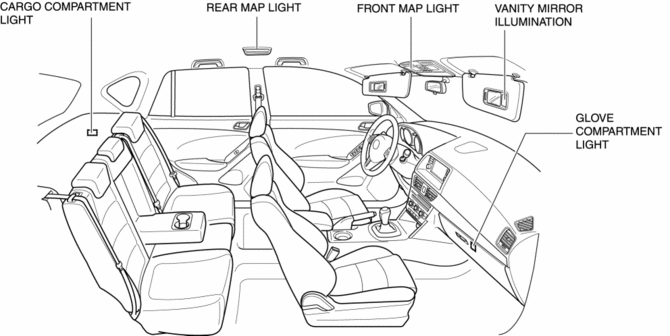

Structural View
System Wiring Diagram
Front Map Light
Purpose
The front map lights shine light at the front of the vehicle interior.
Function
The front map lights illuminate when the map light switch is turned on.
Illuminates ...
Map Light Bulb Removal/Installation
Front Map Light
1. Disconnect the negative battery cable..
2. To prevent scratches or damage, affix protective tape to the position shown
in the figure.
CAUTION:
If a flathead screwdriv ...
