Mazda CX-5 Service & Repair Manual: High Pressure Fuel Pump Control
Outline
-
Changes the fuel pressure applied to the fuel injector according to engine operation conditions to improve engine output and startability.
-
The PCM determines the fuel pressure value corresponding to the engine operation conditions based on the each input signal, and drives the spill valve control solenoid valve for optimum control of fuel pressure.

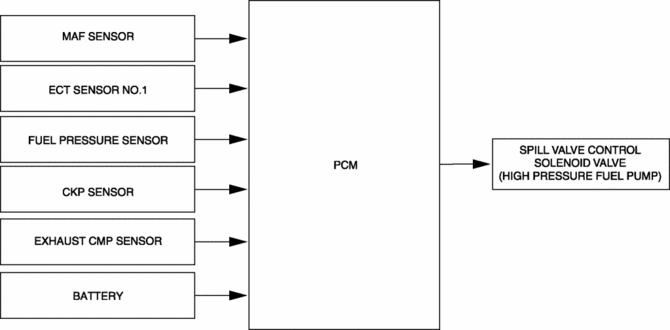

Block Diagram
OPERATION
Directly after engine start
-
During a cold engine start, the fuel pressure is raised to promote fuel atomization.
Basic Control
-
The PCM determines the target fuel pressure according to charging efficiency and performs feedback control by monitoring the fuel pressure in the fuel delivery pipe using the fuel pressure sensor.
-
When idling after engine warm up: Approx. 3 MPa {31 kgf/cm2, 435 psi}
-
After engine warm up, engine speed is 3,000 rpm or more, charging efficiency is 60 % or more: Approx. 15.0 MPa {153 kgf/cm2, 2176 psi}
