Mazda CX-5 Service & Repair Manual: Headliner
Purpose/Function
-
The headliner is equipped with a shock absorbing pad for driver's head protection during a collision.
Construction
-

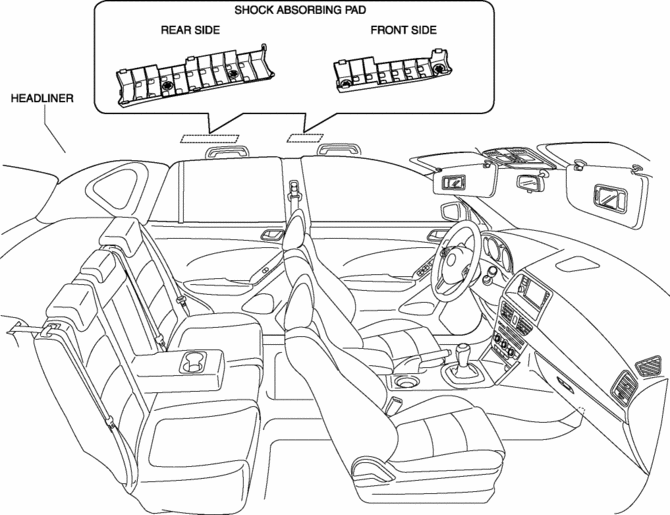

The front and rear side of the headliner is equipped with a shock absorbing pad with a plastic rib-pad structure.
Front Side Trim Removal/Installation
1. Remove the front scuff plate..
2. Partially peel back the seaming welt.
3. Remove the cap nut.
4. Pull the front side trim in the direction of the arrow shown in the figure
and remove i ...
Headliner Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Sunroof seaming welt (with sunroof system).
b. A-pillar trim.
c. Front map light.
d. Sunvisor.
e. Front scuff p ...
