Mazda CX-5 Service & Repair Manual: Global Positioning System (Gps) Antenna Removal/Installation

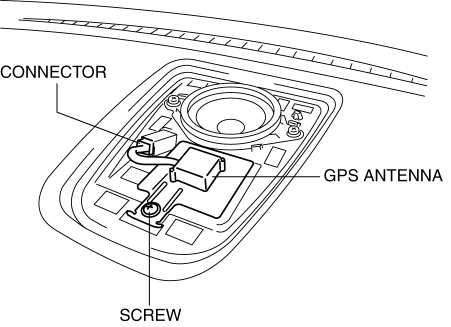

1. Disconnect the negative battery cable..
2. Remove the center speaker grille..
3. Disconnect the connector.
4. Remove the screw.
5. Remove the GPS antenna.
6. Install in the reverse order of removal.
Global Positioning System (Gps) Antenna
Purpose, Function
The GPS antenna receives signals sent from GPS satellites and sends them
to the car navigation unit.
NOTE:
GPS (Global Positioning System) was developed by th ...
