Outline

The following glass has been adopted.

Windshield
Front door glass
Rear door glass
Rear door quarter glass
Quarter window glass
Rear window glass
Outer mirror glass

The following mirrors have been adopted.

Power outer mirror
Rearview mirror
Auto-dimming mirror (with auto-dimming mirror)

Rear window defroster has been adopted on the rear window glass.

Heated outer mirror has been adopted on the power outer mirrors. (with heated outer mirror system)

An auto-dimming mirror has been adopted on the rearview mirror. (with auto-dimming mirror)

UV protection glass has been adopted. (with UV protection glass)

Specification

Glass is thinner than for weight reduction.

Windshield: 4.5 mm
{0.18 in
}
Front door glass: 4.0 mm
{0.16 in
}
Rear door glass: 3.5 mm
{0.14 in
}
Rear door quarter glass: 3.1 mm
{0.12 in
}
Quarter window glass: 2.8 mm
{0.11 in
}
Rear window glass: 2.8 mm
{0.11 in
}

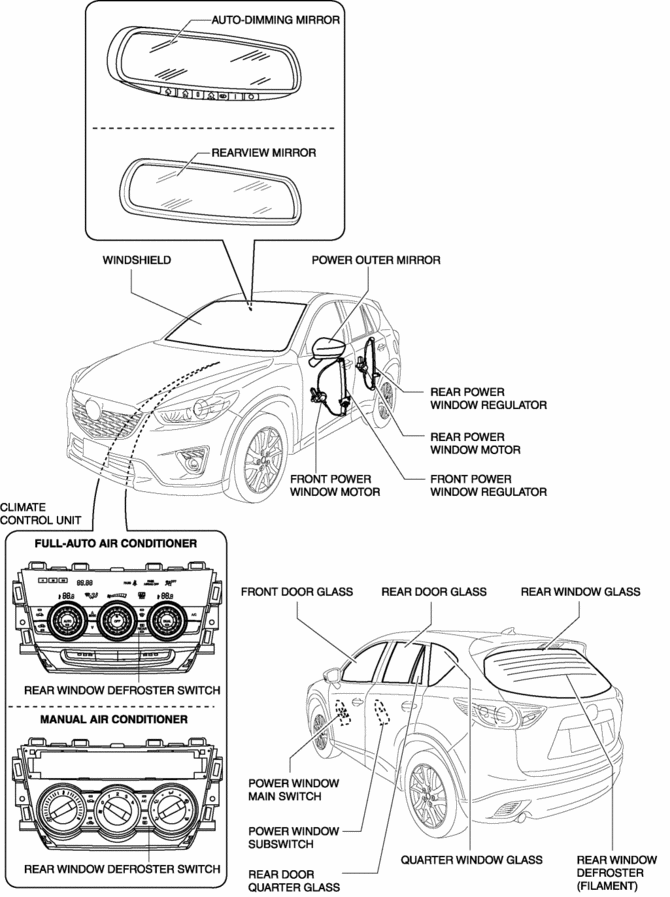

Structural view

Filament Repair

1. Clean the filament using isopropyl alcohol. 2. Attach tape to both sides of the filament. 3. Using a small brush or marking pen, apply silver paint. 4. After 2—3 min, carefully remove t ...

Mirror Base Installation

1. Cut away all of the original sealant using a razor. WARNING: Using a razor with bare hands can cause injury. Always wear gloves when using a razor. 2. Clean and degrease the cera ...
