Mazda CX-5 Service & Repair Manual: Fuel Tank

Mazda CX-5 Service & Repair Manual / Engine / Fuel / Fuel Tank

Purpose, Function

Store fuel safely and supply fuel to the engine.

Construction

U.S.A. and CANADA

The fuel tank is installed below the rear seat.

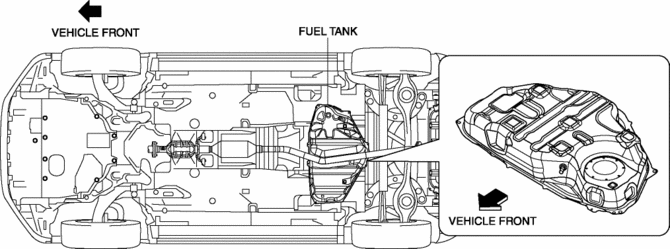

2WD

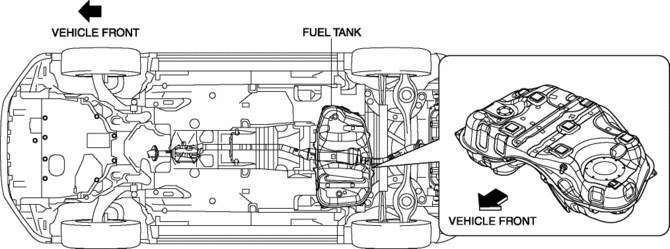

AWD
The fuel tank is made of steel.
The following parts are integrated in the fuel tank.

Non-return valve

(See NON-RETURN VALVE [SKYACTIV-G 2.0].)
Rollover valve

(See ROLLOVER VALVE [SKYACTIV-G 2.0].)
Fuel shut-off valve

(See FUEL SHUT-OFF VALVE [SKYACTIV-G 2.0].)

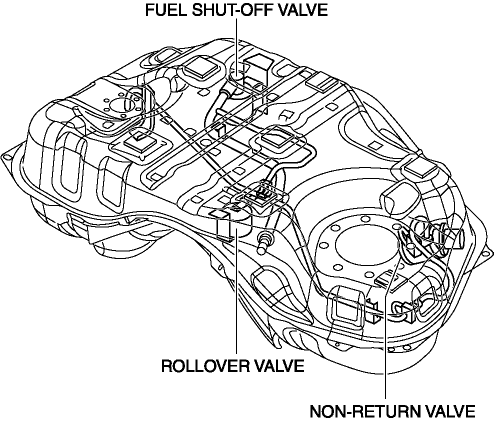

2WD

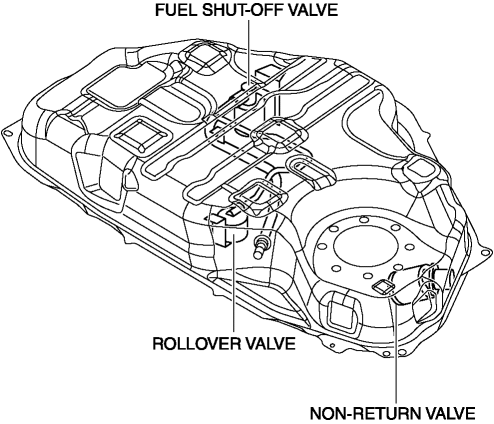

AWD

Except U.S.A. and CANADA

The fuel tank is installed below the rear seat.

2WD

AWD
The fuel tank is made of steel.
The following parts are integrated in the fuel tank.

Non-return valve

(See NON-RETURN VALVE [SKYACTIV-G 2.0].)
Rollover valve

(See ROLLOVER VALVE [SKYACTIV-G 2.0].)

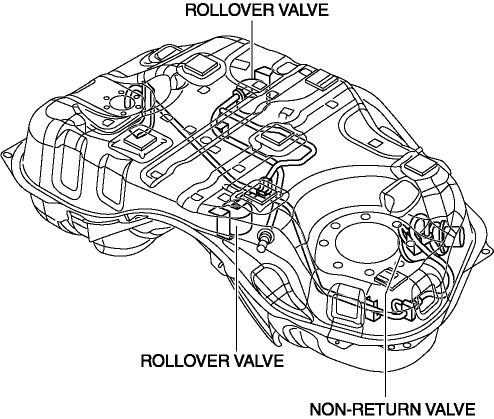

2WD

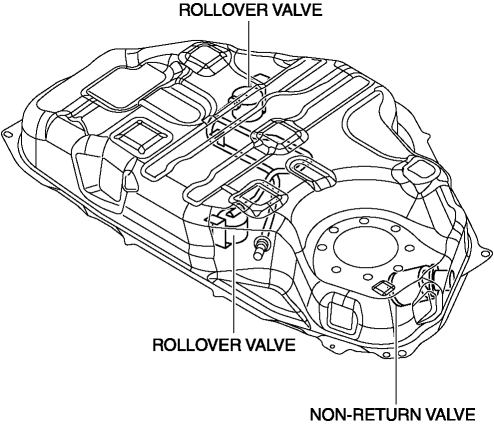

AWD
