Mazda CX-5 Service & Repair Manual: Fuel Pump Control Module Removal/Installation

Mazda CX-5 Service & Repair Manual / Engine / Fuel / Fuel Pump Control Module Removal/Installation

1. Disconnect the negative battery cable..

2. Tip the rear seat (LH).

3. Disconnect the clip connected to trunk board.

4. Disconnect the fuel pump control module connector.

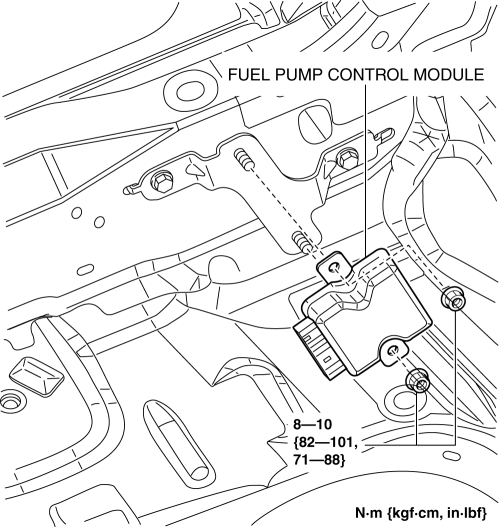

5. Remove the fuel pump control module.


6. Install in the reverse order of removal.

Fuel Pump Control Module Inspection
1. Perform the KOEO self-test.. 2. Verify that a fuel pump control module related DTC is detected.. If DTCs are detected, repair the malfunctioning part according to the applicable DTC tr ...

Fuel Pump Control Module
Purpose, Function Controls the voltage applied to the fuel pump for reducing fuel pump load and improving fuel economy. Controls the voltage applied to the fuel pump based on the con ...
