Mazda CX-5 Service & Repair Manual: Fuel Injector Relay
Purpose, Function
-
Supplies power to the PCM for the fuel injector and spill valve control solenoid valve operation.
Construction
-

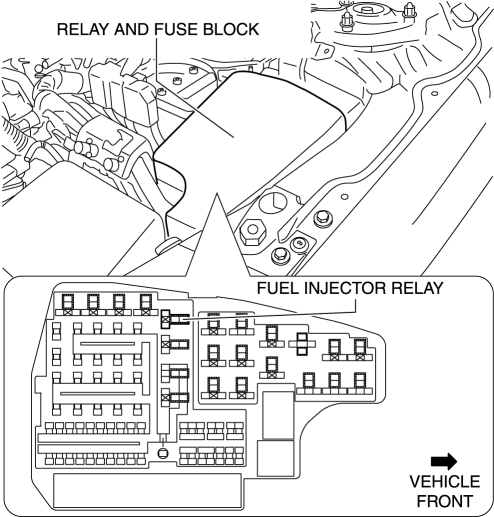

The fuel injector relay is installed in the relay and fuse block.
Operation
-

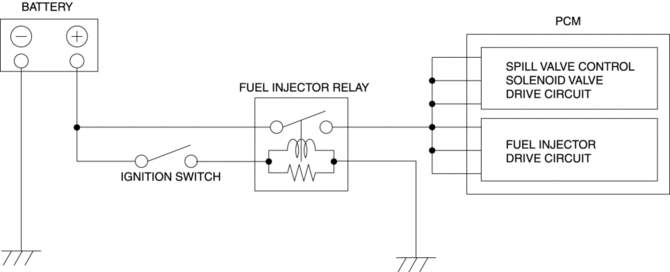

When the ignition is switched ON, the battery voltage is supplied to the coil and the contact point is on, thus the battery voltage is supplied to the PCM.
Fail-safe
-
Function not equipped.
